REDUCE MAINTENANCE TIME
USE ADJUSTABLE OR PUSH-PULL PLUGS TO SEAL THAT LEAKING TUBE

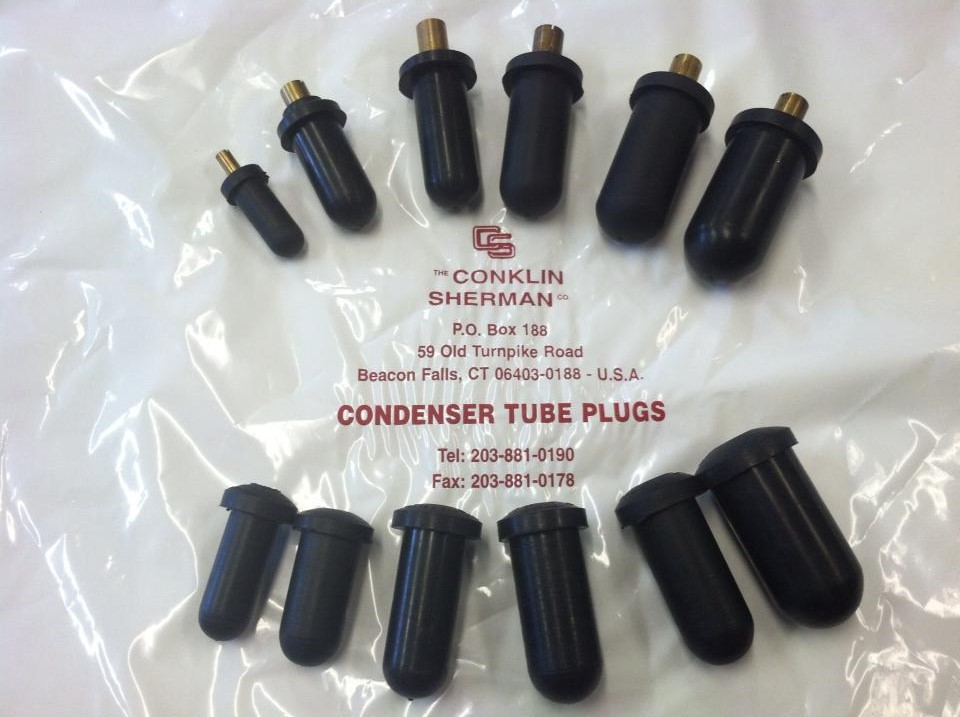

Adjustable Condenser Tube Plug: The special feature of a Conklin Sherman Adjustable Condenser Tube Plug is its ability to be reused again and again. A special brass screw mechanism allows you to distend or stretch the plug. You then insert the plug in your tube. When you release the tension, the plug will expand to make a very tight fit -- and a screwdriver is the only tool required!

  • 100% inspected
  • Tested to 100-125 PSI and can take temperatures up to 260 Fahrenheit
  • Rubber is nitrile and oil resistant - Metal insert is all brass
  • Sizes available: 0.536 O.D. (5/8 x 17 gauge) to 2.045 O.D. (2 x 26 gauge)



Push Pull Plug: Our push pull plug is for one-time use. The push pull plug has a molded rubber body with an inside cavity to allow for contraction when inserting or removing it from a tube. It can be inserted by pushing against the inside cavity wall. The head creates a stop during insertion and provides a gripping area when removing.
  • Push pull plugs are nitrile rubber
  • Tested to 60-70 PSI and can take temperatures up to 260 Fahrenheit
  • Sizes available: 0.536 O.D. (5/8 x 17 gauge) to 2.045 O.D. (2 x 26 gauge)



Company Summary: Manufactures condenser or generator air cooler tube plugs. Adjustable plugs can be reused again and again. A special brass screw mechanism allows you to distend the plug, then insert in tube. After you release the tension to expand plug for a tight fit. A screwdriver is the only tool required. Push Pull plug is for one time use. A molded rubber body with an inside cavity allows for contraction when inserting. Simply insert by pushing against inside cavity wall. The head creates a stop and can be used for gripping when removing. Plugs are Nitrile Rubber. Metal insert is Brass. Can take temperatures to 260 degrees C. Oil resistant, sizes 0.536 O.D. to 2.045 O.D. Over One Million Plugs Sold.
